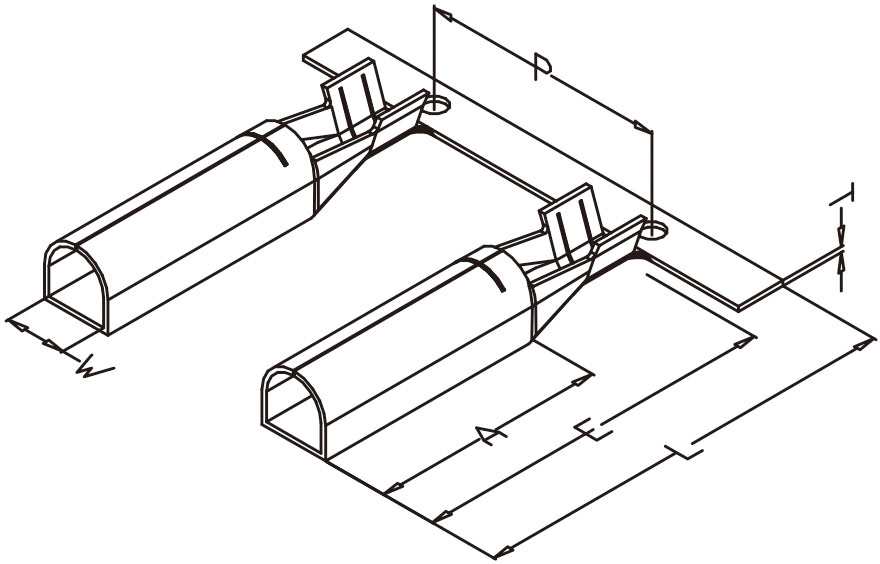

32 Male/Female Pins
 |
 |
| Part No. | Part Name | 板厚 | 間距 | Dimension | Suitbale Wire AWG# | Material Finish | Paching | Remark | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T | P | L | E | A | W | ||||||
| 321110 | 銅管4.75D | 0.4 | 19.5 | 34.5 | 29.3 | 18.8 | 5.7 | 14-18 | Brass | 2,500 | |
| 321143 | 銅管4.75D#10 | 0.4 | 19.5 | 34.5 | 29.3 | 18.8 | 5.7 | 10-12 | Brass | 2,500 | |
| 321144 | 銅管4.75D(折彎) | 0.4 | 19.5 | 34.5 | 29.3 | 18.8 | 5.7 | 14-18 | Brass | 2,500 | |
| 321148 | 銅管4.75D#16 | 0.4 | 19.5 | 34.5 | 29.3 | 18.8 | 5.7 | 16-18 | Brass | 2,500 | |
